Teleco Automation DMC 230V Dimmer and Receiver TVDMCxxxBB01
|
|
Luminux is proud to present you the Intense 230V Dimmer Receiver
which allows the user to adjust the brightness to the desired level and
to create scene settings and atmospheres.
Intense 230V Dimmer receiver is suitable for different kinds of lights,
thanks to the built-in radio module it can be wireless controlled
by remote transmitters. It is equipped with fade function at
switch-on and off of the light, with memory function of the last
level of lighting and with and push-buttons UP/DOWN/OFF for manual
regulation. It perfectly integrates with the products of the Intense
range and if controlled by a 7-channel transmitter it is possible
to pre-set 4 light scenes. |
|
|
 |
|
¡@ |
Universal, suitable different kinds of lights: halogen, resistive lamps, 230V dimmable LED lamps |
|
¡@ |
Minimum load 25W only |
|
¡@ |
Indestructible. 100% protected against short circuits and overheating |
|
¡@ |
Easy Installation - One wire to replace the existing switches with IN/OUT connection
|
|
¡@ |
Wireless - built-radio module to create scene settings with the transmitters |
|
¡@ |
Interchangeable frames in different colours (White / Black) and materials (Poly Glass, Stainless Steel or Glass),
available on request |
|
¡@ |
Programmable for minimum light level, fade function at switch ON and OFF, memeory last level of light |
|
¡@ |
Compatible with all series Teleco Automation Transmitters |
|
¡@ |
PUSH Button Input for 2 ways Dimming |
|
|
 |
¡@ |
|
 |
¡@ |
 |
|
Model No |
TVDMCxxxBB01 |
|
Input Power |
220-230VAC, 50/60Hz |
|
Resistive Light Power 230V |
Max. 450W, Min. 25W |
|
Dimmable Transformer (LC) |
Max. 300W, Min. 25W |
|
Operating Temperature |
-20ºC + 50ºC |
|
Remote Controllable |
Yes |
|

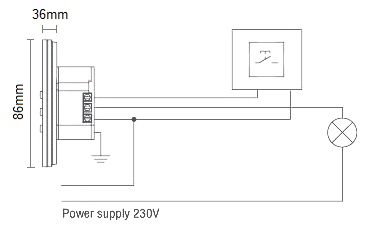

Dimensions |
L86 x W86 x H36(mm) |
 |
|
¡@ |
 |
|
|
¡@ |
 |
|
